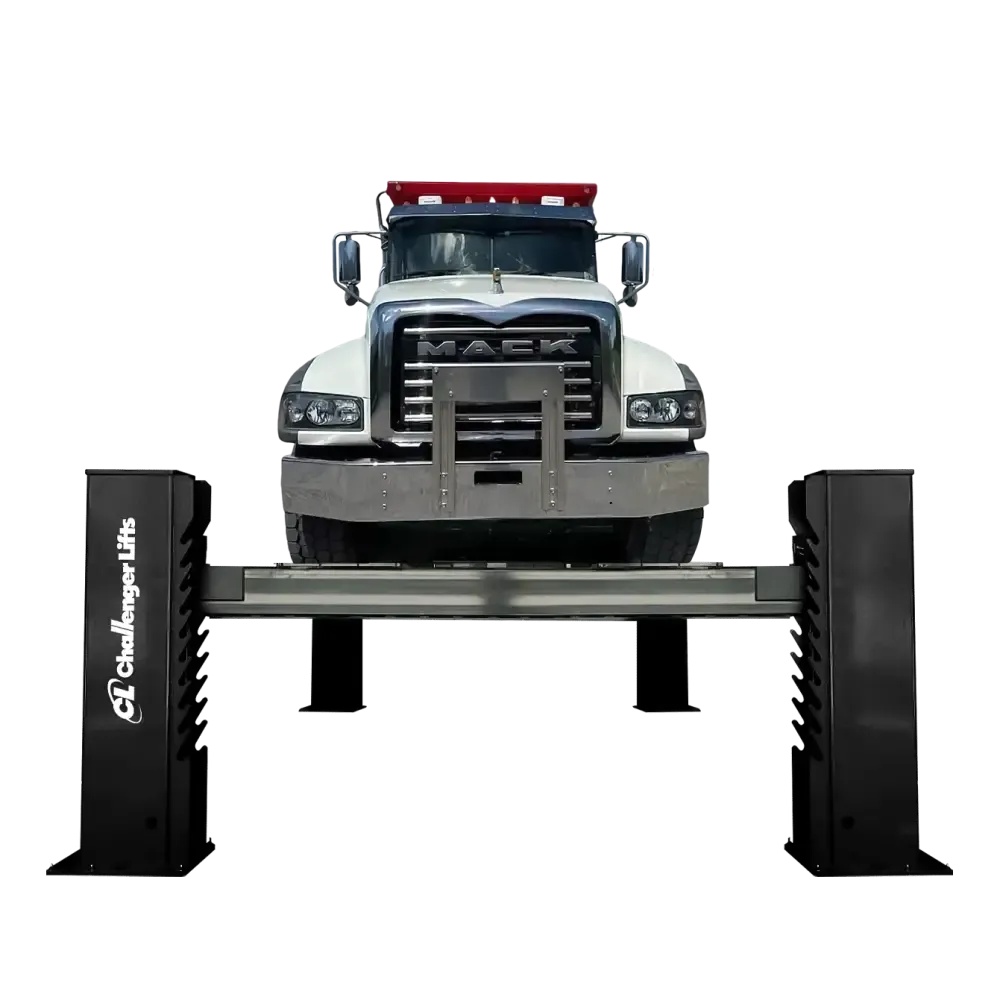

The Challenger 44050 HD Chain-Driven 4-Post Truck Lift is the ideal solution for businesses handling heavy-duty vehicles such as waste and construction trucks. Its 50,000 lb capacity, dual hydraulic cylinders, and variable-synchro power system allow precise lifting of vehicles with heavier front or rear axles. Diamond-plated anti-skid runways, adjustable widths, and twin ladder lock positions ensure maximum safety and flexibility for diverse vehicle sizes. With a runway rail system for rolling jacks and other accessories, it offers added convenience. Also available in extended (44050E), and extra-long (44050X) models for longer vehicle lengths.
Features:
- 50,000 lb capacity for heavy-duty trucks and vehicles
- Chain-driven 4-post lift with dual hydraulic cylinders
- Variable-synchro system for front or rear axle lifting
- Independent control console for safe, easy operation
- Diamond-plated anti-skid runways ensure vehicle traction
- Adjustable runways fit a variety of vehicle widths
- Twin ladder lock positions offer multiple working heights
- Built-in rail system for rolling jacks and accessories
- Redundant hydraulic safety system for enhanced reliability
- Single-point air lock release for easy column disengagement
- Also Available in extended, and extra-long models
- Ideal for waste trucks, transit, and construction vehicles
Specs:
Lift Capacity: 50,000 lbs.Overall Length: 36ft
Between Columns: 290in
Maximum Wheelbase: 310in
Overall Width: 17ft 1-1/4in
Inside Columns: 144in
Overall Height: 92in
Height of Runways: 14in
Width of Runways: 32in
Width Between Runways: 36in - 58in
Rise Height: 73in
Motor: 15P
Voltage: 230v - 460v 3 Phase
Speed of Rise: 75 seconds
Amps: 30
Concrete Specification
4” Thick, Reinforced, Free from cracks/seams, rated at 3500 psi, and cured at least 28 days
Similar Products
44050E (41 ft). 44050X (46 ft)
Same Series Lifts Models: 44030, 44040, 44040E, 44040X, 44050, 44050E, 44050X, 44060, 44060E, 44060X
Ref Name
4-Post Truck Lift
Heavy-Duty Truck Lift
50,000 lb Truck Lift
Chain-Driven Truck Lift
Application:
Truck Repair ShopsFleet Maintenance
Waste Management
Construction Vehicles
Commercial Trucking
